Vibratory Classifiers / Vibrating Sieve / Pellet Screen

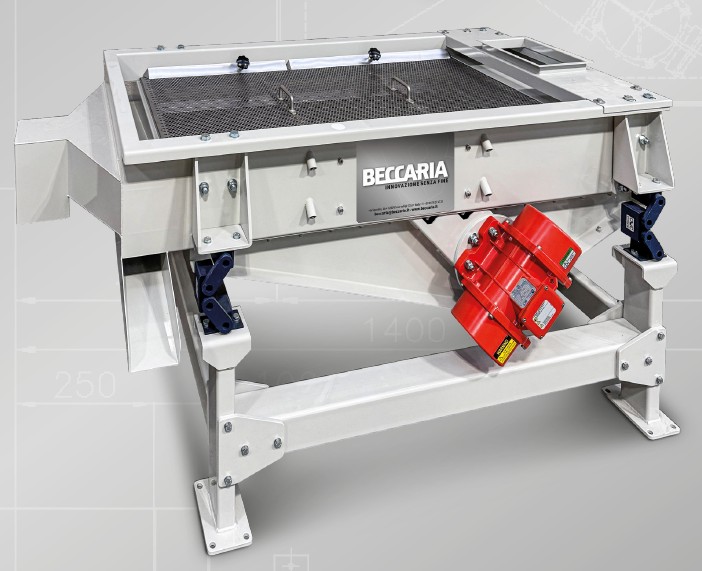

The vibrating sieve mod. “TGV2 - TGV4” is the ideal equipment for sorting plastic granules in different
sizes. Made up of a frame with two sieves powered by two electrical vibrators and controlled by an automatic
switch, the vibrating sieve proves to be an indispensable machine to get a sieved product at cutter or granulator
discharge. The execution of parts in contact with product is in stainless steel INOX AISI 304.
Execution in compliance with ATEX Directive 2014/34 EU and CE Directive n.1935/2004 (FCM).

Features of TGV2:

• Parts in contact with the product are manufactured in stainless steel INOX AISI 304 or 316.
• Vibrating screens are very easy to remove and clean using quick release handwheels.
• Wide range of sieve sizes available.
• Throughput 1000-1200 kg/hr (assuming for plastic granules with bulk density 0.6kg/dm3)
• Low energy consumption (only 600 w installed power)

Features of TGV4:

• Parts in contact with the product are manufactured in stainless steel INOX AISI 304 or 316.
• Vibrating screens are very easy to remove and clean using quick release handwheels.
• Wide range of sieve sizes available. (sieve holes available diameters: 2-6-8mm, other upon request)
• Throughput 2000-2400 kg/hr (assuming for plastic granules with bulk density 0.6kg/dm3)
• Low energy consumption

Benefits:

• Reliable operation with minimum downtime.
• Efficient removal of undersized and oversize particles
• Rapid strip down and cleaning of sieve possible by operators.

Can't see exactly what you need? We can tailor our equipment to your specific needs. To contact us please click here.

You may also wish to consider our rotary sieve
